• Components Overview: print head, xy gantry, build tray,
• Safety: hot printheads & bed, moving components
• Job Setup:
  • At the computer: CAD → export .stl → Bambu Studio OR OrcaSlicer (set up print parameters and support materials) → select “IW_H2D-1” printer → start print (make sure “Enable AMS” and “Bed Leveling” are selected)→ record in FBS
  • At the printer: remove leftover supports/calibration lines → clean and dry build tray

• Both print heads and bed are heated during operation. Do not attempt to clean, remove, or adjust without allowing for adequate cool down time.
  • Wait until it cools down to approximately 60 C

• Inadequate part adhesion to the bed - can cause print failure
  • Can be prevented with proper bed cleaning, bed adhesion print settings, and correct build tray alignment

1. Launch Bambu Studio (green Bambu Lab logo) or OrcaSlicer
2. Start a fresh plate: select File → New Project

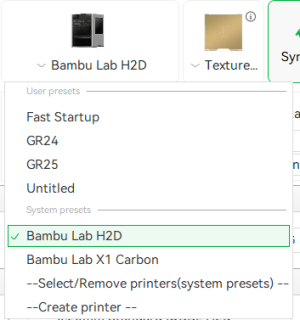

3. Ensure nozzle size and build tray is selected correctly (see Bambu Studio Software Information)
4. Import your STL file onto the software: select File → Import → Import 3MF/STL/… → choose your STL file
5. Set up scale, orientation, arrangement, and supports as needed
6. Select the right filament and the right nozzle
7. Slice plate and make reservation on FBS
8. Before starting print, scrape off any leftover support and calibration lines and clean build tray with soap and water
9. Align build tray in printer with the smaller tab facing the back
10. Check AMS to see if there is enough filament for your print. If not enough filament, replace the spool
11. Once build tray/printer is all set up, click “Print Plate” on Bambu Studio
    1. Select “IW_H2D-1” for the printer
    2. Make sure only “Bed Leveling” and “Enable AMS” is selected and start print

1. Within Bambu Slicer, follow these tutorials to slice in dual materials:
   • Bambu Labs Tutorial
   • Youtube Tutorial
2. To swap filament navigate to Filament Icon→Left Spool→Unload within the H2D display,
3. Allow H2D to unload filament, follow instructions accordingly
4. Once unloaded, remove the spool from the Creality filament dryer
5. Respool the filament neatly and store in proper bin
6. Place desired filament spool into the Creality Filament dryer
7. Insert the filament through the bowden tube until it can't be inserted further
8. Within the H2D display, navigate to Filament Icon → Left Spool → Load, follow instructions accordingly

• Remove part from print bed using your hands or a scraper (try not to touch the build tray with your bare hands)

• Scrape off calibration lines on the sides of the build tray
• Bed should be cleaned with soap and water and can be dried using paper towels
  • DO NOT touch the surface of build tray with your bare hands. Hold build tray by the tabs
