Crystalmark Training SOP

Last edited: Rachel Lin (8/14/23)
Tool Lead: Yanis Yankauskas
Contact: ckwok520@ucsb.edu

Training Checklist:

Safety Concerns

Common Mistakes

Safe Operating Procedures Review

  1. Open air pressure valve (to the left of FlashCut CNC)
  2. Turn on FlashCut CNC
  3. Turn on CrystalMark DV-1 (under table)
  4. Plug in camera to computer (USB connection)
  5. Fixture piece onto part mount

There are two ways to use the CNC: Etching with a .dxf file or manually etching: using .dxf file or manually

If .dxf:

  1. At computer: Load .dxf into the “DXF to G-Code Converter” application:
  2. For each shape in the display window, right click and select “Cutter Compensation” → select either “Right Compensation” or “Left Compensation” depending on whether you want the positive or negative compensation (the blue outline is the new cut path)
  3. Select “Export” → “Optimize and Export Shapes” → save as .ngc
  4. open .ngc in “FlashCut CNC 4”:
  5. open “DinoCapture 2.0” (Used to monitor operation):
  6. Place the acrylic plate on the crystalmark mount
  7. Jog the nozzle into the hole
  8. “Set” → “Zero X and Zero Y”
  9. Jog the CNC down to the surface of your piece
  10. “Set” → “Zero Z”, be careful not to crash etching nozzle
  11. After zero-ing the Z axis, move up in Z until Z is at 1.1 mm. This will be your cutting height.
  12. Select “Jog” and jog CNC to where the .dxf origin should be on your piece
  13. “Set” → “Zero X”, “Set” → “Zero Y”

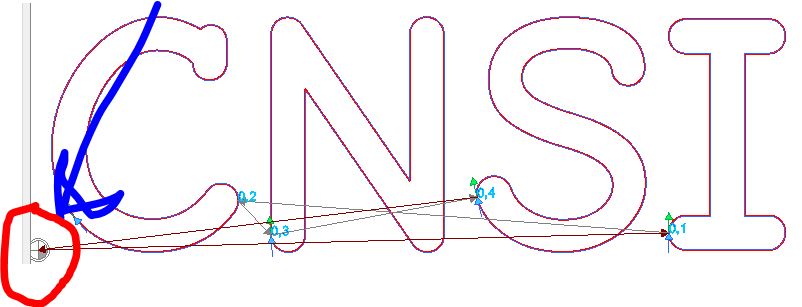

  14. Note that origin is displayed in “DXF to G-Code Converter” (You can modify the origin in the software your .dxf was created):
  15. Use tape and/or turn on vaccum to fixture part (optional)
  16. Begin etching : “G-Code” → “Start”
  17. Monitor operation
  18. Select any key while in “FlashCut CNC 4” to stop operation

If manual:

  1. open “FlashCut CNC 4”:
  2. open “DinoCapture 2.0” (Used to monitor operation):
  3. Place the acrylic plate on the crystalmark mount
  4. Jog the nozzle into the hole
  5. “Set” → “Zero X and Zero Y”
  6. Jog the CNC down to the surface of your piece
  7. “Set” → “Zero Z”, be careful not to crash etching nozzle
  8. After zero-ing the Z axis, move up in Z until Z is at 1.1 mm. This will be your cutting height.
  9. Use tape and/or turn on vaccum to fixture part (optional)
  10. Select “CrystalMark” switch and set to “on”
  11. Let the Etcher create a through hole
  12. Select “CrystalMark” switch and set to “off”
  13. In “DinoCapture 2.0”, center the red lines about the hole
  14. Jog X and Y to desired location, A hole will be made where the red lines intersect
  15. Select “CrystalMark” switch and set to “on”
  16. Monitor operation
  17. Select “CrystalMark” switch and set to “off”

Part Removal and Cleaning

Maintenance

Additional Information

You can record your cuts in DinoCapture

Troubleshooting

If the Crystalmark is not cutting, the abrasive canister may be empty. Please contact workshop staff to refill tool.
